APEC BNB BOARD-N-BATT.

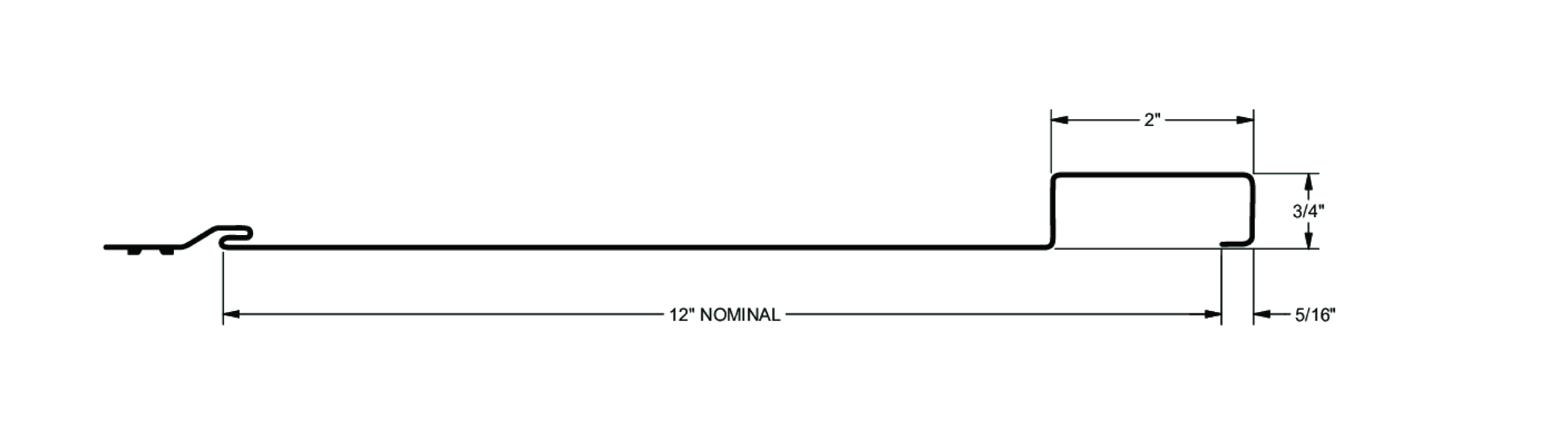

Panel Features

• Panel Type

  Wall

• Panel Width Min

  12″ Nominal

• Seam Height

  3/4″

• Mounting Orientation

  Vertical

• Materials Formed

   22 and 24-gauge steel

Notes:

• This panel uses 3-5/8″ of material to form the panel.
• 1″ X 1/4″ slots are equally spaced every 6-3/8″.
• Striations or ribs may be needed for panels wider than 12″ coverage to avoid oil canning.
