Secondary Framing Members
All secondary framing members are roll formed on Bradbury® Tooling in red-oxide, gray oxide, white oxide and G-90 Galv. finishes. Unequal flange, Custom shapes and 10 gauge members/shapes are also available.

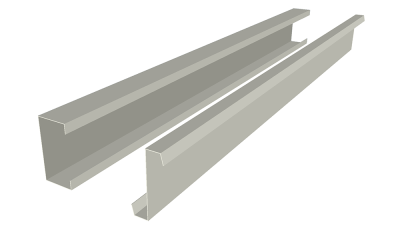

Cees & Zees
| Cees & Zees | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | FLANGE SIZE | GAUGE | ||||||
| 4″ | 2″ & 2 1/2″ | 14 & 16 | ||||||
| 6″ | 2 1/2″ | 12, 14 & 16 | ||||||
| 8″ | 2 1/2 ” & 3 1/2″ | 12, 14 & 16 | ||||||
| 10″ | 2 1/2 ” & 3 1/2″ | 12 & 14 | ||||||
| 12″ | 2 1/2 ” & 3 1/2″ | 12 & 14 | ||||||

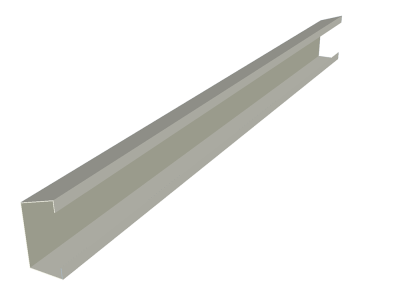

Eave Struts
| Eave Struts | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | FLANGE SIZE | GAUGE | ||||||
| 8″ | 3″ | 12 & 14 | ||||||
| 10″ | 3″ | 12 & 14 | ||||||
| 12″ | 3″ | 12 & 14 | ||||||
